• all new v80

    Great Wave

  • ALL New V80

    great wave

    神奈川衝浪裏

    Hot swappable



  • broken image

    the Great wave

    off Kanagawa

    神奈川衝浪裏

    葛飾北齋

  •

    Hot-Swappable

    Easily remove and install any MX-based switch

    Embedded Three Dye Sublimated Key

    Esc / Enter / Space Bar

    White Backlit

    Gateron/Kailh (Cherry without backlit)

    PBT Double Shot Keycap

    White seamless shine through keycap

    South-facing Switch Orientation

    Silicone Sound Absorbing Plate

  • learn more about

    the Great Wave off Kanagawa

    The Great Wave off Kanagawa (Japanese: 神奈川沖浪裏, Hepburn: Kanagawa-oki Nami Ura, lit. "Under the Wave off Kanagawa"), also known as The Great Wave or simply The Wave, is a woodblock print by the Japanese ukiyo-e artist Hokusai. It was published sometime between 1829 and 1833 in the late Edo period as the first print in Hokusai's series Thirty-six Views of Mount Fuji. The image depicts an enormous wave threatening three boats off the coast in the Sagami Bay (Kanagawa Prefecture) while Mount Fuji rises in the background. Sometimes assumed to be a tsunami, the wave is more likely to be a large rogue wave.
    It is Hokusai's most famous work and is often considered the most recognizable work of Japanese art in the world.

  • ukiyo-e dye sublimated key

    High quality thick PBT keycaps with a slight grainy surface and dye sublimated lettering. Like a fine wine, these are top tier keycaps us mechanical keyboard fanatics drool over.

    Dye Sub Space Bar









    Dye Sub ESC

    Female wave















    Dye Sub Enter Key

  • black or white

    White

    Black

  • broken image

    Hot swap pcb

    Easily remove and install any MX-based switch without any soldering. Personalize to what works for you, and use any combinations of switches!

  • How to remove the switches

    • When removing the switches, use the switch puller. Unclip the top and bottom clips while pulling up gently.
    • The low profile switches are more difficult to remove. When removing them, make sure you clip the sides.
    • Be careful not to scratch the keyboard with the puller.
    • BE VERY CAREFUL when mounting the switches! If you feel a lot of resistance, don’t continue pushing. If you push too hard, you could break an electronic component and void the warranty.
    • When mounting the switches, align the pins and insert them into the correct holes. The same applies to the low profile switches.
    • Be careful not to bend the metal pins when mounting the switches.
    • While fitting the switches, do it gently. If you feel a lot of resistance, don’t continue pushing. If you push too hard you could break an electronic component and void the warranty.
    • The hole on the switch where the LED light shines through should be at the bottom.

  • Sound Absorbing construction

    Silicone Plate

    Sound Absorbing Form

    Sound Absorbing Rubber under space bar

  • broken image

    lubed stabilizer

    South-Facing switch orientation

    smopther , less noise

  • broken image

    Dye-sublimation printing

    Dye-sublimation printing (or dye-sub printing) is a computer printing technique which uses heat to transfer dye onto materials such as a plastic, card, paper, or fabric. The sublimation name was first applied because the dye was considered to make the transition between the solid and gas states without going through a liquid stage. This understanding of the process was later shown to be incorrect, as there is some liquefying of the dye. Since then, the proper name for the process has become known as dye-diffusion, though this technically-correct term has not supplanted the original name. Many consumer and professional dye-sublimation printers are designed and used for producing photographic prints, ID cards, clothing, and more.

  • broken image

    PBT Double shot keycap

    beside ESC/Enter/Space bar , others in Blue on White seamless keycap with Blue legends PBT Double Shot keycaps. Unlike printing, this keycap type is produced when two layers of plastic are molded into each other. No printing necessary. The end result is a key legend which will never fade or chip off. ABS keys will develop a shine over time; but PBT keys will retain their texture even after heavy use.

  • Precision laser engraving

    Laser engraving Right and Left Shift. The technique does not involve the use of inks, nor does it involve tool bits which contact the engraving surface and wear out

    Cherry Non Backlit version

    Cherry Non Backlit version

    Back

    Foot Stand

  • broken image

    accessories

    Wire keypuller

    Switch puller



    Bonus

    Vertical 1 x 2 Enter key Dye-Sub Mt.Fuji

    17 Number keys



  • broken image

    white backlit effect

    19 modes

  • V80 Typing

  • Description

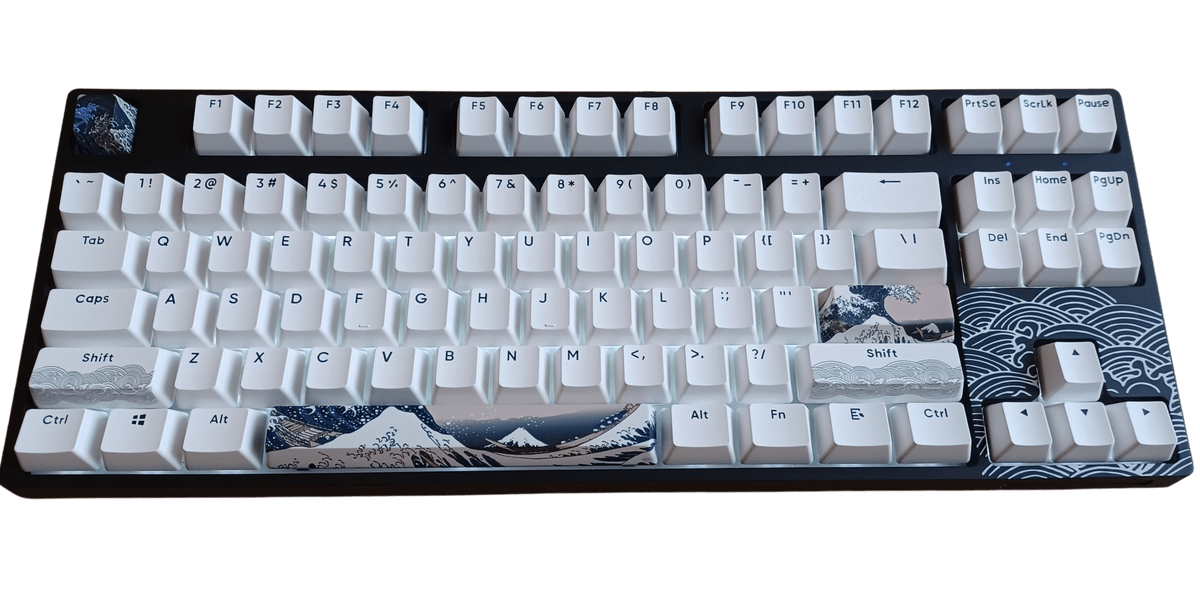

    KBParadise ALL NEW V80 Great Wave MECHANICAL KEYBOARD

    80% COMPACT SIZE CUSTOMIZED WITH SEAMLESS PBT DOUBLE SHOT KEYCAPS

    Hot Swapppable

    Features

    • Hot-swappable switches. Easily remove and install any MX-based switch without any soldering. Personalize to what works for you, and use any combinations of switches!
    • Easy Access Hot-Keys – Directly access shortcuts to productivity, internet and multimedia functions
    • Raised Keys, Minimalist design – No visible branding on keyboard to make your battlestation look clean as possible. Raised key design allows you to easily clean your keyboard.

    Specifications:

    • Model: V80GW
    • Prebuilt : Yes
    • Mechanical Switch: Cherry / Kailh / Gateron
    • Keycaps color: white
    • Top color: Black or White plate
    • Bottom color: Black or White ABS plastic plate
    • USB cable color: Black
    • Keycaps: PBT Seamless Double shot embed 3pcs Dye Sub keycap
    • Removable USB-C
    • Stabilizers Included
    • 87 Key Standard QWERTY layout (ANSI)
    • 100% Anti-Ghosting
    • N-Key Rollover: Full NKRO via USB
    • Polling Rate: 1000 Hz
    • Dimensions (L x W x H) 360 × 135 × 40 mm

    SYSTEM REQUIREMENTS:

    • Interface: USB 2.0
    • Windows XP, Vista, 7, 8, 10 ,11

    INCLUDED IN BOX:

    • New V80 keyboard
    • Quick Start Guide
    • Keycap Puller Tool
    • Switch Puller Tool
    • 1pc 1x2 Mt. Fuji Dye sub keycap
    • 17pcs Number area keys
