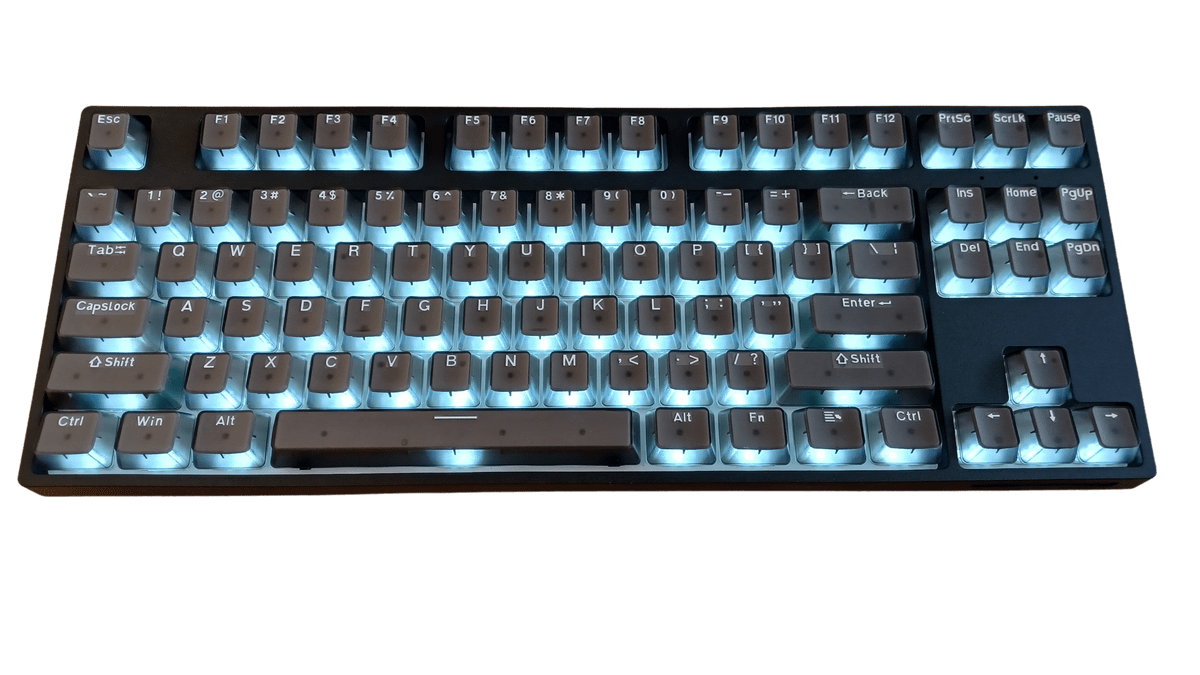

New V80 Black Crystal

ALL New V80
black crystal
Hot-Swappable
Easily remove and install any MX-based switch
White Backlit
Gateron/Kailh switch
Smoke Crystal PC Double Shot Keycap

South-facing Switch Orientation
Silicone Sound Absorbing Plate
Detachable USB-C
easier to use
80% Tkl
black
crystal
Tenkeyless
Compact size , slim bezel
Hot swap
Easily remove and install any MX-based switch without any soldering. Personalize to what works for you, and use any combinations of switches!
How to remove the switches
When removing the switches, use the switch puller. Unclip the top and bottom clips while pulling up gently.
The low profile switches are more difficult to remove. When removing them, make sure you clip the sides.
Be careful not to scratch the keyboard with the puller.
BE VERY CAREFUL when mounting the switches! If you feel a lot of resistance, don’t continue pushing. If you push too hard, you could break an electronic component and void the warranty.
When mounting the switches, align the pins and insert them into the correct holes. The same applies to the low profile switches.
Be careful not to bend the metal pins when mounting the switches.
While fitting the switches, do it gently. If you feel a lot of resistance, don’t continue pushing. If you push too hard you could break an electronic component and void the warranty.
The hole on the switch where the LED light shines through should be at the bottom.
Sound Absorbing construction
Silicone Plate
Sound Absorbing Form
Sound Absorbing Rubber under space bar
white backlit

Manual
white backlit effect
19 modes
Manual
lubed stabilizer
south-facing switch orientation
smoother , less noise
smoked crystal
PC Double shot keycap
Unlike printing, this keycap type is produced when two layers of plastic are molded into each other. No printing necessary. The end result is a key legend which will never fade or chip off. ABS keys will develop a shine over time; but PC keys will retain their texture even after heavy use.
Order
Smoked Crystal PC Double Shot Keycap
White Backlit
Gateron / Kailh

off light

Front
Foot Stand
accessories
Wire keypuller
Switch puller

Bonus
17 Number keys
Description
KBParadise ALL NEW V80 Great Wave MECHANICAL KEYBOARD
80% COMPACT SIZE CUSTOMIZED WITH SEAMLESS PBT DOUBLE SHOT KEYCAPS
Hot Swapppable
Features
Hot-swappable switches. Easily remove and install any MX-based switch without any soldering. Personalize to what works for you, and use any combinations of switches!
Easy Access Hot-Keys – Directly access shortcuts to productivity, internet and multimedia functions
Raised Keys, Minimalist design – No visible branding on keyboard to make your battlestation look clean as possible. Raised key design allows you to easily clean your keyboard.
Specifications:
Model: V80BC
Prebuilt : Yes
Mechanical Switch: Kailh / Gateron / Leobog / KTT
Keycaps color: white/Grey with Blue Letter
Top color: Black plate
Bottom color: Black or White ABS plastic plate
USB cable color: Black
Keycaps: PBT Seamless Double shot embed 3pcs Dye Sub keycap
Removable USB-C
Stabilizers Included
87 Key Standard QWERTY layout (ANSI)
100% Anti-Ghosting
N-Key Rollover: Full NKRO via USB
Polling Rate: 1000 Hz
Dimensions (L x W x H) 360 × 135 × 40 mm
SYSTEM REQUIREMENTS:
Interface: USB 2.0
Windows XP, Vista, 7, 8, 10 ,11
INCLUDED IN BOX:
New V80 keyboard
Quick Start Guide
Keycap Puller Tool
Switch Puller Tool
1pc 1x2 Mt. Fuji Dye sub keycap
17pcs Number area keys
